ZL Nylon Pin Gear Coupling China Suppliers and Factory for Industrial Transmission
The ZL Nylon Pin Gear Coupling is a high-performance industrial transmission solution engineered for reliability and durability. Its sophisticated core structure consists of two half couplings featuring external teeth and a precision-engineered housing with internal teeth. By utilizing elastic nylon pins, this coupling effectively compensates for radial, angular, and axial offsets between connected shafts, ensuring seamless power transmission even under challenging alignment conditions.
Designed specifically for medium to high-speed operations and medium to heavy-load environments, the ZL series is the ideal choice for pumps, compressors, fans, and general industrial machinery. Its ability to absorb shock and mitigate dynamic loads significantly reduces wear on equipment foundations, while the maintenance-free design of the nylon elements ensures maximum uptime and reduced operational costs for your facility.
Detailed Parameters
| Core Structure | Two half couplings with external teeth & internal tooth housing | Load Capacity | Medium to Heavy-duty transmission |
|---|---|---|---|
| Elastic Element | High-grade Nylon Pins | Compensation Type | Radial, Angular, and Axial offset |
| Operating Speed | Medium to High speed compatible | Lubrication Requirement | None (Lubrication-free design) |
| Maintenance Part | Replaceable Elastic Nylon Pins | Application Range | Pumps, Fans, Compressors, General Machinery |
| Transmission Style | Ring gear constraint + Multi-pin bearing | Structural Profile | Compact and Space-saving |
Key Advantages
Precision Compensation
Effectively handles radial, angular, and axial displacements, allowing for installation deviations without compromising performance.
Vibration Dampening

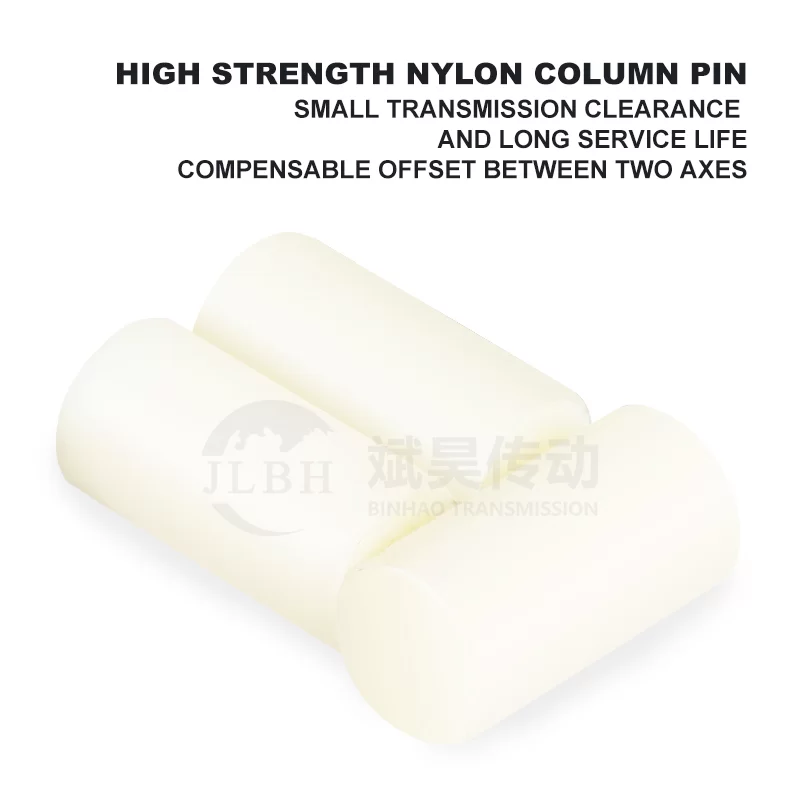

Nylon pins absorb impact loads and attenuate torsional vibrations, protecting your equipment from peak dynamic loads.
High Torque Capacity
Combines elastic buffering with a robust ring gear design to transmit higher torque than pure rubber element couplings.
Zero Lubrication
The nylon pin design eliminates the need for oil, preventing leaks and maintaining a cleaner working environment.
Rapid Maintenance

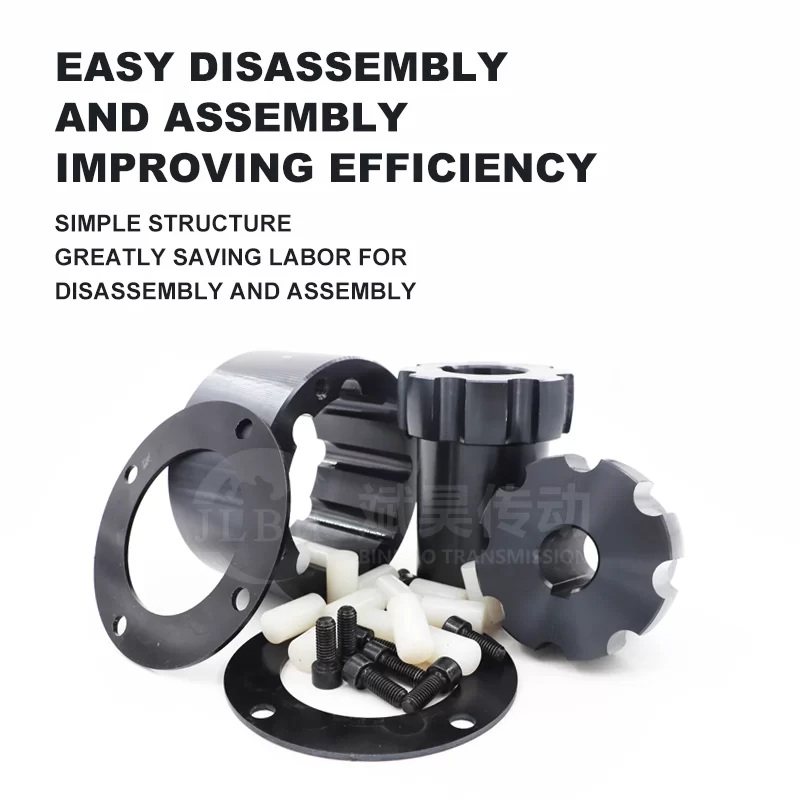

Simple pin replacement requires only housing disassembly; no need to move the main shaft or motor during service.
Cost-Efficient Life
Low-cost replacement parts and reduced downtime maximize the overall ROI of your mechanical transmission system.
Product Gallery
Management Platforms
Inventory Control
Real-time tracking of coupling sizes and nylon pin spare parts to ensure zero downtime.
Life Cycle Monitoring
Predictive maintenance schedules based on torque loads and operational hours.
Wear Alerts
Automated notifications for elastic pin replacement intervals to prevent catastrophic failure.
Performance Analytics
Monitoring vibration reduction efficiency to optimize machine alignment.
Logistics Integration
Streamlined procurement for replacement parts with fast global shipping options.
Technical Support
Direct access to engineering experts for customized coupling selection and installation.
Investment Return Comparison
| Feature | Standard Rubber Couplings | ZL Nylon Pin Coupling |
|---|---|---|
| Torque Density | Low to Medium | Medium to High |
| Maintenance Cost | Moderate (Frequent replacement) | Low (Simple pin swap) |
| Downtime | High (Requires shaft realignment) | Minimal (Housing only access) |
| Operating Cost | Requires periodic checks | Lubrication-free / Maintenance-free |
| Equipment Lifespan | Standard | Extended (Due to vibration absorption) |
Frequently Asked Questions
It is ideal for medium to high-speed and medium to heavy-load applications, specifically in pumps, compressors, industrial fans, and general machinery where buffering and compensation for installation deviations are required.
The high-elasticity nylon pins allow the coupling to compensate for radial, angular (deflection angle), and axial displacements between the two connected shafts.
No, the nylon pin design is completely lubrication-free. This eliminates oil leakage risks and removes the labor and material costs associated with lubrication maintenance.
Maintenance is highly simplified; you only need to disassemble the housing to replace the elastic pins. There is no need to move the motor or the main shaft of the equipment.
Thanks to the ring gear constraint and multi-pin bearing structure, the ZL coupling provides significantly higher load-bearing and torque transmission capacity than most pure rubber element couplings.
Yes, the nylon pins act as shock absorbers that attenuate torsional vibrations and mitigate peak dynamic loads, which significantly reduces noise and the impact of vibration on the equipment foundation.
Optimize Your Transmission Efficiency Today
Contact Us
