Rotex ZS-DKM-H Flexible Rubber Jaw Coupling Manufacturer Exporter

XL Spider Coupling

The XL (Star-type) Flexible Jaw Rubber Coupler, encompassing the GR, GE, and GS variants, is a ubiquitous transmission component distinguished by its resilient elastomer insert, often referred to as a "spider." Binhao manufactures the metal hubs with high precision, ensuring optimal fit with this central elastic element. The primary function of the XL series is to provide effective vibration damping and shock absorption, significantly reducing dynamic loads and protecting the bearings of the connected equipment. The design inherently allows for the reliable accommodation of minor angular, parallel, and axial misalignments. The choice of elastomer material (GR, GE, GS) determines the coupling’s operational characteristics, such as torque capacity and temperature resistance, allowing Binhao to tailor the product to specific needs. Due to its non-lubricated operation and simple construction, this series is widely favored in a vast array of general machinery, including small to medium-sized pumps, fans, and compressors, benefiting from Binhao's large spare parts inventory for rapid spider replacement.

PRODUCT CATEGORIES

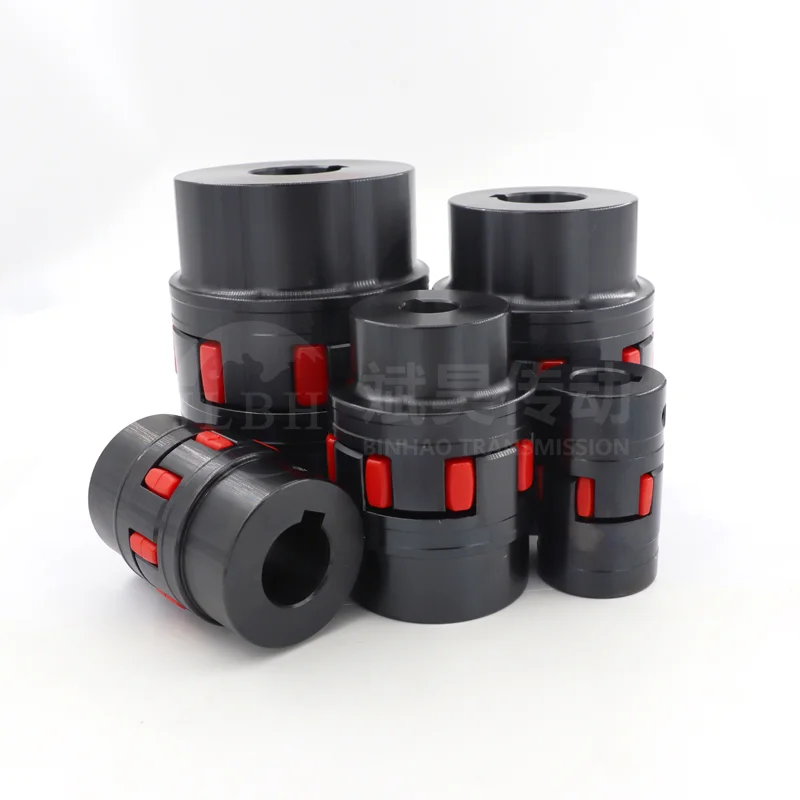

XL Star Type Spider Jaw Coupler Industrial Flexible Curved Shaft Couplings Aluminium Flexible Shaft Jaw Coupling XL Spider Jaw

XL GR GE GS Spider Flexible Coupling Jaw Rubber Coupler

XL Star Type Spider Jaw Coupler Industrial Flexible Curved Shaft Couplings Aluminium Flexible Shaft Jaw Coupling XL Spider Jaw

The XL star coupling ‌ is a flexible coupling with ‌ polyurethane star-shaped elastic body ‌ as the core force transmission element. It features ‌ efficient deviation compensation ‌ (angular/radial/axial) and ‌ strong buffering and vibration reduction ‌ capabilities. Its maintenance-free design significantly reduces the usage cost. The overload fracture characteristic of the elastomer can actively protect the safety of the equipment. It is suitable for ‌ medium and high-speed transmission scenarios such as pumps and conveyor lines ‌. As the top choice in terms of cost performance in the general transmission field, it provides ‌ reliable, quiet and insulated ‌ power connection for motors and reducers in an environment ranging from -40℃ to 120℃.

XL GR GE GS Spider Flexible Coupling Jaw Rubber Coupler

Our modernized production facility enables us to achieve an impressive annual output capacity of up to 3 million couplings. This scale of production demonstrates our robust capabilities and efficiency, allowing us to handle large-volume orders from major industrial clients globally. This capacity is supported by 12,000 square meters of standardized workshops and efficient workflows, ensuring that we can consistently meet demanding delivery schedules and support the continuous operation of critical industrial sectors worldwide without compromising the quality of our products.

Exceptional Vibration Dampening

The elastomer spider efficiently absorbs sudden torque spikes and operational vibration, significantly protecting motor and gearbox components from stress.

Zero Maintenance Requirement

Designed for clean, non-lubricated operation, eliminating the need for routine grease application and simplifying maintenance schedules across the plant.

High Misalignment Tolerance

Reliably compensates for all forms of angular, parallel, and axial shaft misalignments, which extends the service life of connected bearings.

Inherent Fail-Safe Design

Should the flexible rubber insert fail under severe overload, the interlocking metal jaws ensure emergency power transmission can continue.

Flexible Jaw Rubber Coupler Advantages

Choose the XL Flexible Jaw Coupler for superior protection of your valuable rotating equipment. The elastomeric spider efficiently cushions sudden torque spikes and actively dampens operational vibrations, creating a smoother, quieter running system. Designed for non-lubricated performance, this coupling ensures clean operation and simplifies maintenance. It reliably compensates for shaft misalignments, preventing undue stress on motor and gearbox bearings, thus significantly extending the service life of your entire drivetrain while maintaining critical fail-safe capabilities.

What Customers Say About Flexible Jaw Rubber Coupler

Discover why industrial professionals trust the XL Jaw Coupler for stability and durability. Our customers consistently highlight the coupling’s exceptional ability to dampen severe operational vibrations and cushion sudden shock loads, significantly reducing stress on their valuable motors and gearboxes.

This coupling has drastically reduced the operational noise on our HVAC unit. The rubber element absorbs vibration perfectly, creating a much smoother running system. Installation was quick and simple, and we appreciate the non-lubricated design for cleanliness. It’s an incredibly reliable and low-maintenance choice for general power transmission.

James

We chose this jaw coupling specifically for its shock absorption capabilities. It handles the frequent start-stop cycles of our conveyor without transmitting damaging torque spikes back to the motor. The flexible spider element makes replacing the component straightforward, which minimizes our maintenance downtime efficiently.

Oliver

The quality of the machined hubs is excellent, ensuring perfect alignment with the shafts. The coupling easily manages the minor misalignments inherent in our pump setup, preventing premature bearing failure. It has proven to be a durable and cost-effective solution for our continuous duty applications.

Riley

Binhao's rubber coupler has provided superior vibration dampening compared to our previous metallic coupling. The cushioning effect is noticeable, extending the life of both the motor and the driven equipment. We trust this design for its robust construction and simple, reliable performance.

Phoenix

What sold us was the fail-safe design. Knowing that the metal jaws will mesh if the elastomer ever breaks gives us critical peace of mind for uninterrupted operation. It's a highly dependable component that works exactly as advertised in demanding manufacturing environments.

William

We rely on this flexible coupler for its ability to electrically isolate the connected shafts, which is a key safety requirement in our facility. The coupling has been maintenance-free since installation, handling our load demands without any issues or signs of material degradation.

Riley
