SDM Diaphragm Coupling
We specialize exclusively in the R&D, design, manufacturing, and sales of coupling products. This singular focus has enabled us to accumulate deep expertise and establish a competitive edge over generalized machinery suppliers. Our dedicated engineering teams continuously work to optimize coupling performance parameters, including load capacity, misalignment tolerance, and fatigue life. This specialization ensures that every product, from the ML plum blossom to the JM diaphragm coupling, is meticulously designed for optimal functionality and durability in its intended application, reflecting our goal to be a globally influential specialist.
Zero Backlash and High Precision
All-metal design ensures synchronization and precise motion control, which is critical for high-speed and sensitive equipment.
Low Reaction Forces
The flexible diaphragms accommodate misalignment with minimal stress, significantly extending the service life of connected bearings.
Low Rotational Inertia
Constructed from lightweight aluminum alloy, enhancing responsiveness and minimizing energy loss during high-speed operation.
Non-Lubricated Operation
The metallic elements require no maintenance or grease, ensuring clean performance in high-speed and high-purity environments.

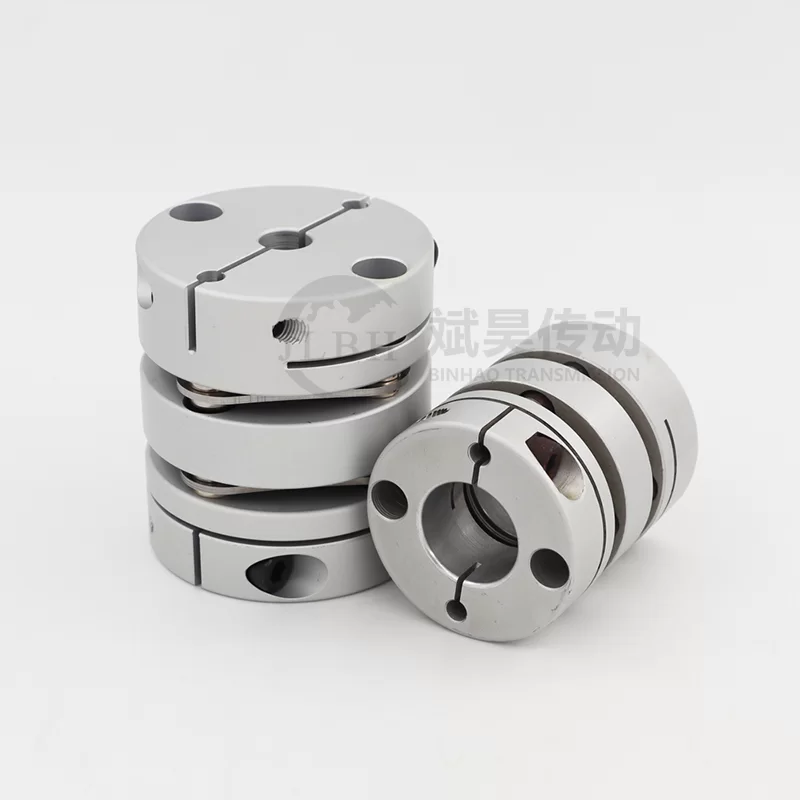

Aluminum Alloy Double Diaphragm Coupling Advantages
The SDM coupling is engineered with lightweight aluminum alloy for minimal rotational inertia, making it ideal for high-speed systems. Its all-metal, double-diaphragm design ensures zero-backlash, highly precise torque transmission. It accommodates misalignment with exceptionally low reaction forces, significantly protecting connected equipment bearings. Being non-lubricated, it is entirely maintenance-free and guarantees clean operation, making it the superior choice for critical, high-precision applications in power generation and sensitive chemical processing where stability and reliability are paramount.
SDM Aluminum Alloy Double Diaphragm Coupling Customer Reviews
Discover why high-speed equipment manufacturers choose the SDM Double Diaphragm Coupler. Our customers rely on its all-metal, zero-backlash design for ultra-precise synchronization and torque transmission in critical applications. They emphasize that the lightweight aluminum alloy minimizes inertia, while the flexible diaphragms ensure minimal reaction forces on bearings.
The SDM coupling is essential for our high-speed turbine application. Its aluminum alloy construction drastically reduces inertia, and the double-diaphragm design ensures zero-backlash, high-precision torque transmission crucial for synchronization.
Jack
We chose this coupling specifically for its exceptionally low reaction forces. It handles minor misalignments without transferring damaging stress to our highly sensitive compressor bearings, significantly extending the life of the critical equipment.
Phoenix
The all-metal design means no lubrication is ever needed, making it ideal for our clean process environment. It provides constant velocity and excellent balance, guaranteeing reliable performance even at maximum rotational speeds.
Cameron
Binhao's precision manufacturing of the diaphragm elements is outstanding. This coupling maintains perfect balance and structural integrity, giving us confidence in its long-term fatigue life in demanding chemical processing installations.
Mason
The lightweight aluminum construction combined with high torsional stiffness is exactly what we needed for our test bench applications. It transmits power precisely and is completely maintenance-free, a huge operational advantage.
Ethan
This is a premium, high-integrity coupling. It accommodates axial movement and parallel offset gracefully, confirming its suitability for linking equipment over long spans where thermal expansion is a continuous factor.
Avery
